Hub Units Bearing513121, Applied to Buick, Cadillac , Chevrolet

Hub Units Bearing513121, Applied to Buick, Cadillac , Chevrolet

513121 front Hub unit assembly used for Buick, Cadillac , Chevrolet and so on. TP Provides One-stop Service and Technical Consulting, Technical team can give professional advice on wheel hub unit selection and drawing confirmation. 25 Years experience ensures reliable and stable quality on bearing orders. Customize special bearing — provide OEM and ODM service, quick Lead Time.

OEM:

BR930148

Cross Reference

HA590197, BR930197

Application

Buick, Cadillac , Chevrolet

MOQ

50 pcs

Product Details

Product Description

The 513121 hub unit has a splined shaft that provides a secure and stable connection to the wheel. This spindle helps support the ball bearings and serves as a seat for the hub unit's flange and seals. In turn, the flange is the mounting point for the bolts that secure the hub unit to the vehicle's suspension system. These bolts secure the hub unit in place, providing maximum stability and performance.

In addition to the spindle, flange, ball bearings and bolts, the 513121 wheel hub unit features high quality seals that keep the hub assembly free of dust, dirt and debris. Seals protect the unit from contamination, ensuring smooth operation and longer life of the ball bearings.

The 513121 hub unit is also equipped with an integrated sensor that collects essential data from the wheel while monitoring wheel movement. The sensor is an essential part of modern car electronics, providing critical information to the vehicle's on-board computer system, enabling drivers to make informed decisions about how they drive.

When it comes to durability, the 513121 hub unit assembly is designed to withstand extreme weather conditions and harsh driving environments. The ball bearings are manufactured to a high standard and the seals ensure that no contamination enters the unit. All components are designed for longevity and consistent, reliable performance.

Customize special bearing — provide OEM and ODM service, quick Lead Time. Provides One-stop Service and Technical Consulting, full range of products for the aftermarket industry.

513121 is the 3rd generation hub assembly in structure of double row angular contact balls, which is used on driven shaft of automotive wheel, and it consists of splined spindle, flange, balls, seals, sensor & bolts.

Wheel Hub Unit 513121 For Buick, Cadillac , Chevrolet

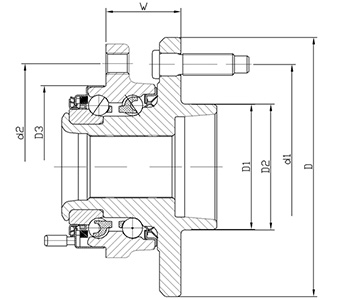

Design Drawings

Product Parameters

Gen Type (1/2/3)	3
Bearing Type	Ball
ABS Type	Sensor
Wheel Flange Dia (D)	145.5mm / 5.728in
Wheel Bolt Cir Dia (d1)	115mm / 4.528in
Wheel Bolt Qty	5
Wheel Bolt Threads	M12×1.5
Spline Qty	33
Brake Pilot (D2)	70.6mm / 2.78in
Wheel Pilot (D1)	70.1mm / 2.76in
Flange Offset (W)	42.06mm / 1.656in
Mtg Bolts Cir Dia (d2)	116mm / 4.567in
Mtg Bolt Qty	3
Mtg Bolt Threads	M12×1.75
Mtg Pilot Dia (D3)	91.25mm / 3.593in
Comment	Includes Metal and Palstic clip

Refer to samples cost , we will revert it to you when we start our business transaction. Or if you agree to place us your trial order now, we can send samples in free of charge.

We are auto wheel hub unit manufacturer and supplier, wheel hub bearings applicable to various types of vehicles. The products displayed on the website are only part of our company's products. If you can't find the product you want, please tell us and we will send you the technical solutions and requirements separately.

OEM Number

SKF BR930148

For detailed information and customized solutions, please feel free to contact us.

Product List

TP can supply the 1st, 2nd, 3rd generation Hub Units, which include structures of double row contact balls and double row tapered rollers both, with gear or non-gear rings, with ABS sensors & magnetic seals etc.

We have more than 900 items available for your choice, as long as you send us the reference numbers such as SKF, BCA, TIMKEN, SNR, IRB, NSK etc., we can quote for you accordingly. It is always TP’s goal to supply cost-effective products and excellent services to our customers.

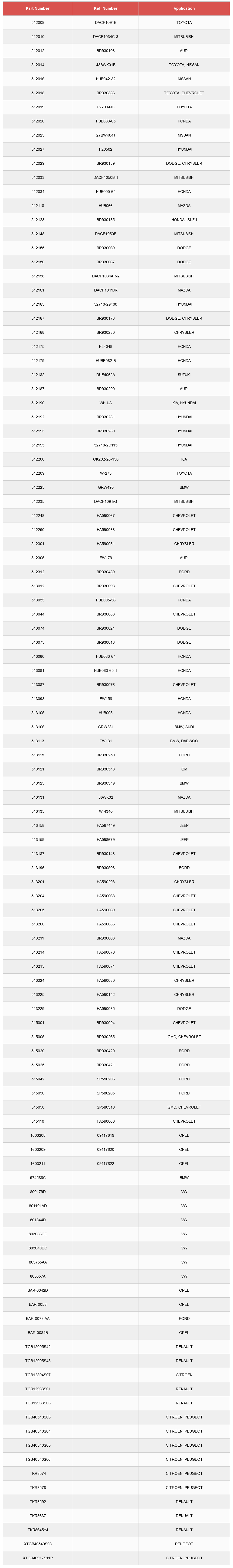

Below list is part of our hot-selling products, if you need more product information, please feel free to contact us.

Part Number	Ref. Number	Application
512009	DACF1091E	TOYOTA
512010	DACF1034C-3	MITSUBISHI
512012	BR930108	AUDI
512014	43BWK01B	TOYOTA, NISSAN
512016	HUB042-32	NISSAN
512018	BR930336	TOYOTA, CHEVROLET
512019	H22034JC	TOYOTA
512020	HUB083-65	HONDA
512025	27BWK04J	NISSAN
512027	H20502	HYUNDAI
512029	BR930189	DODGE, CHRYSLER
512033	DACF1050B-1	MITSUBISHI
512034	HUB005-64	HONDA
512118	HUB066	MAZDA
512123	BR930185	HONDA, ISUZU
512148	DACF1050B	MITSUBISHI
512155	BR930069	DODGE
512156	BR930067	DODGE
512158	DACF1034AR-2	MITSUBISHI
512161	DACF1041JR	MAZDA
512165	52710-29400	HYUNDAI
512167	BR930173	DODGE, CHRYSLER
512168	BR930230	CHRYSLER
512175	H24048	HONDA
512179	HUBB082-B	HONDA
512182	DUF4065A	SUZUKI
512187	BR930290	AUDI
512190	WH-UA	KIA, HYUNDAI
512192	BR930281	HYUNDAI
512193	BR930280	HYUNDAI
512195	52710-2D115	HYUNDAI
512200	OK202-26-150	KIA
512209	W-275	TOYOTA
512225	GRW495	BMW
512235	DACF1091/G	MITSUBISHI
512248	HA590067	CHEVROLET
512250	HA590088	CHEVROLET
512301	HA590031	CHRYSLER
512305	FW179	AUDI
512312	BR930489	FORD
513012	BR930093	CHEVROLET
513033	HUB005-36	HONDA
513044	BR930083	CHEVROLET
513074	BR930021	DODGE
513075	BR930013	DODGE
513080	HUB083-64	HONDA
513081	HUB083-65-1	HONDA
513087	BR930076	CHEVROLET
513098	FW156	HONDA
513105	HUB008	HONDA
513106	GRW231	BMW, AUDI
513113	FW131	BMW, DAEWOO
513115	BR930250	FORD
513121	BR930548	GM
513125	BR930349	BMW
513131	36WK02	MAZDA
513135	W-4340	MITSUBISHI
513158	HA597449	JEEP
513159	HA598679	JEEP
513187	BR930148	CHEVROLET
513196	BR930506	FORD
513201	HA590208	CHRYSLER
513204	HA590068	CHEVROLET
513205	HA590069	CHEVROLET
513206	HA590086	CHEVROLET
513211	BR930603	MAZDA
513214	HA590070	CHEVROLET
513215	HA590071	CHEVROLET
513224	HA590030	CHRYSLER
513225	HA590142	CHRYSLER
513229	HA590035	DODGE
515001	BR930094	CHEVROLET
515005	BR930265	GMC, CHEVROLET
515020	BR930420	FORD
515025	BR930421	FORD
515042	SP550206	FORD
515056	SP580205	FORD
515058	SP580310	GMC, CHEVROLET
515110	HA590060	CHEVROLET
1603208	09117619	OPEL
1603209	09117620	OPEL
1603211	09117622	OPEL
574566C		BMW
800179D		VW
801191AD		VW
801344D		VW
803636CE		VW
803640DC		VW
803755AA		VW
805657A		VW
BAR-0042D		OPEL
BAR-0053		OPEL
BAR-0078 AA		FORD
BAR-0084B		OPEL
TGB12095S42		RENAULT
TGB12095S43		RENAULT
TGB12894S07		CITROEN
TGB12933S01		RENAULT
TGB12933S03		RENAULT
TGB40540S03		CITROEN, PEUGEOT
TGB40540S04		CITROEN, PEUGEOT
TGB40540S05		CITROEN, PEUGEOT
TGB40540S06		CITROEN, PEUGEOT
TKR8574		CITROEN, PEUGEOT
TKR8578		CITROEN, PEUGEOT
TKR8592		RENAULT
TKR8637		RENUALT
TKR8645YJ		RENAULT
XTGB40540S08		PEUGEOT
XTGB40917S11P		CITROEN, PEUGEOT

Why Choose Us

Cost Saving

Financing Saving

Time Saving

Energy Saving

Customization

Non-standard Product Design

Special Service Solution

ISO & IATF16949 Quality Control

Quality Control System

Systematic Management

After-sale Service

Fast Delivery & Flexible MOQ

Short Lead Time

Reliable Global Delivery

Sample Provided

China + Thailand Manufacturing

Reduce Tariff Pressure

Shorten Delivery Times

One-Stop Service

All-in-one Shopping

Complete Product Range

Get Your Hub Units Manual Now

See full specifications and find the right models for your market.

Download

Frequently Asked Questions

What types of products do you mainly supply?

We offer automotive bearings, Hub Assembly, clutch release bearings, tensioner & pulleys, driveshaft center support bearings, truck parts, trailer parts, industrial bearings, and customized components.
What's the TP product's Warranty?

The warranty period for TP products may vary depending on the product type. Typically, the warranty period for vehicle bearings is about one year. We are committed to your satisfaction with our products. Warranty or not, our company culture is to resolve all customer issues to everyone's satisfaction.
Do you support OEM/ODM customization?

Yes. We can produce based on samples, drawings, or specific technical requirements, with full engineering support.

Packaging can also be customized according to your requirements to suit your brand image and needs. If you have a customized requirement for a specific product, please contact us directly.
How long is the lead time generally?

In Trans-Power, For samples, the lead time is about 7 days，if we have stock, we can send you right away.

Generally, the lead time is 20-30 days after receiving the deposit payment.
What kinds of payment methods do you accept?

The most commonly used payment terms are T/T, L/C, D/P, D/A, OA, Western Union, etc.
How to control the quality？

Our factories follow IATF 16949 & ISO quality management systems, supporting full-process quality control and 100% traceability.
Can you provide product samples for testing?

Yes. Samples are available. We can provide sample testing and quality reports before mass production.
Are you a manufacturer or a trading company?

TP is both a manufacturer and trading company for bearings with its factory in China and Thailand, We have been in this line for more than 25 years. TP mainly focuses on top-quality products and excellent supply chain management.We support OEM/ODM and supply over 50+ countries.
What is your MOQ (Minimum Order Quantity)?

We offer flexible MOQ. Samples and trial orders are accepted for new projects or market testing.
Which markets do you mainly supply to?

We primarily serve Auto Parts Wholesalers, Auto Parts Retail Chains, importers, and OEM / Tier 1 / Tier 2 in North America, South America, Europe, the Middle East, Africa, and Southeast Asia.

Get in touch

Interested in 513121? Get a fast quotation about Hub Units manufacturer since 1999.
