Hub Units 800179D, Applied to VW, Seat, Skoda
800179D
800179D is the 2nd generation hub assembly in structure of double row angular contact balls which is used on non-driven shaft of automotive wheel, and it consists of spindle, flange, balls, cage, seals, tone ring.
| Gen Type (1/2/3) | 2 |
| Bearing Type | Ball |
| ABS type | Tone ring |
| Bore | 30mm |
| Wheel Flange Dia (D) | - |
| Wheel Bolt Cir Dia (d1) | 100mm |
| Wheel Bolt Qty | 5 |
| Wheel Bolt Threads | M14×1.5 |
| Spline Qty | - |
| Brake Pilot (D2) | 65mm |
| Wheel Pilot (D1) | 57mm |
| Flange Offset (W) | 41.65mm |
| Mtg Bolts Cir Dia (d2) | - |
| Mtg Bolt Qty | - |
| Mtg Bolt Threads | - |
| Mtg Pilot Dia (D3) | - |
| Comment | - |
Refer to samples cost , we will revert it to you when we start our business transaction. Or if you agree to place us your trial order now, we can send samples in free of charge.
Hub Units
TP can supply the 1st, 2nd, 3rd generation Hub Units, which include structures of double row contact balls and double row tapered rollers both, with gear or non-gear rings, with ABS sensors & magnetic seals etc.
We have more than 900 items available for your choice, as long as you send us the reference numbers such as SKF, BCA, TIMKEN, SNR, IRB, NSK etc., we can quote for you accordingly. It is always TP’s goal to supply cost-effective products and excellent services to our customers.

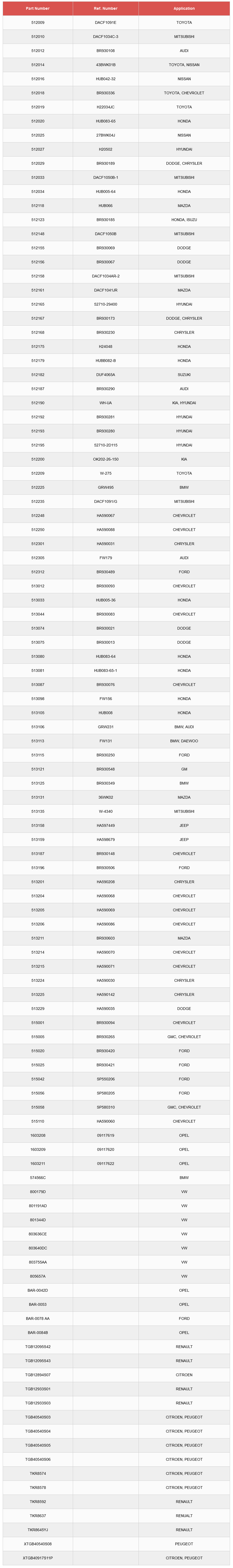

Below list is part of our hot-selling products, if you need more product information, please feel free to contact us.
